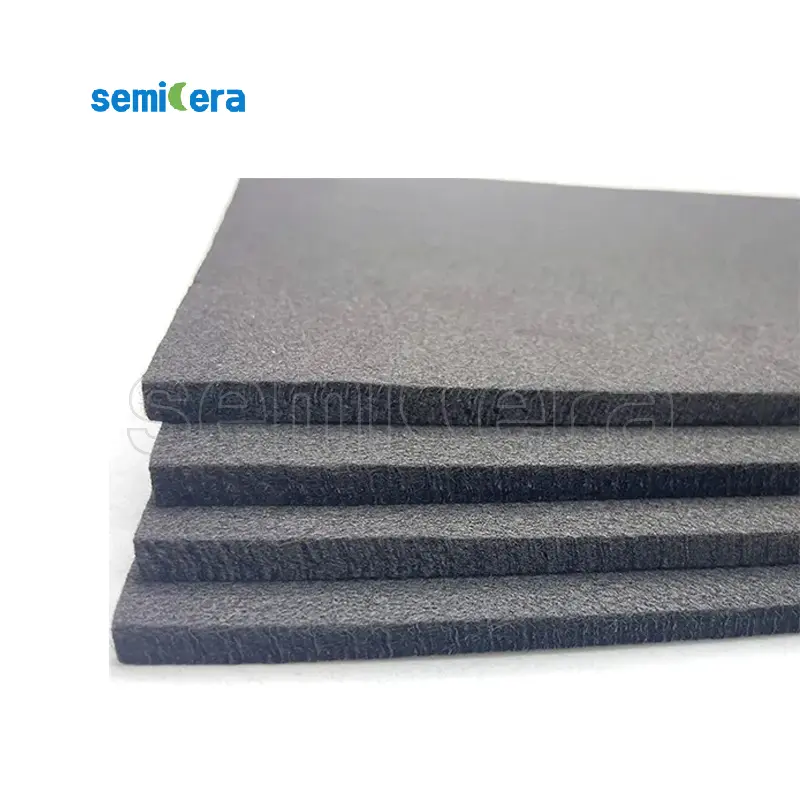

Semicera’s High Purity Graphite Rigid Felt is a premium material engineered for high-temperature applications, delivering exceptional thermal conductivity, chemical resistance, and mechanical strength. Perfect for industries such as semiconductors, electronics, and energy, this high-purity graphite felt ensures reliable performance in demanding environments. Trust Semicera for superior solutions in heat management and material performance.
|
Nome prodotto |
Felimento della grafite |
|
Composizione chimica |
Fibra di carbonio |
|
Densità di massa |
0.12-0.14g/cm3 |
|
Contenuto di carbonio |
> = 99% |
|
Resistenza alla trazione |
0.14Mpa |
|
Thermal conductivity(1150℃) |
0,08 ~ 0,14W/MK |
|
Cenere |
<= 0,005% |
|
Stress schiacciante |
8-10N/cm |
|
Spessore |
1-10mm |
|
Temperatura di elaborazione |
2500(℃) |
Volume Density (g/cm3): 0.22-0.28
Tensile Strength (Mpa): 2.5 (Deformation 5%)
Thermal Conductivity (W/m.k): 0.15-0.25(25) 0.40-0.45(1400)
Specific Resistance (Ohm.cm): 0.18-0.22
Carbon Content (%): ≥99
Ash Content (%): ≤0.6
Moisture Absorption (%): ≤1.6
Purification Scale : Hight Purity
Processing Temperature : 1450-2000
Attualmente sono disponibili quattro voti per fornire prodotti grezzi o trasformati:
SCRF: Purified cured graphite fiber hard felt, heat treatment temperature above 1900℃
SCRF-P: Highly purified RGB hard felt
SCRF-LTC: Purified solidified graphite fiber hard felt, heat treatment temperature above 1900℃, with better thermal insulation performance
SCRF-LTC-P: Highly purified RGB-LTC hard felt
Dimensione disponibile:
Piastra: 1500*1800 (max) spessore 20-200mm
Drum rotondo: 1500*2000 (max) Spessive 20-150mm
Drum quadrato: 1500*1500*2000 (max) spessore 60-120mm
Intervallo di temperatura applicativo: 1250-2600
Fields of applications:
•Vacuum furnaces
•Inert gas furnaces
•Heat treatment (hardening, carbonization, brazing, etc.)
•Carbon fiber production
•Hard metal production
•Sintering applications
•Technical ceramic production
•CVD/PVD coasting
