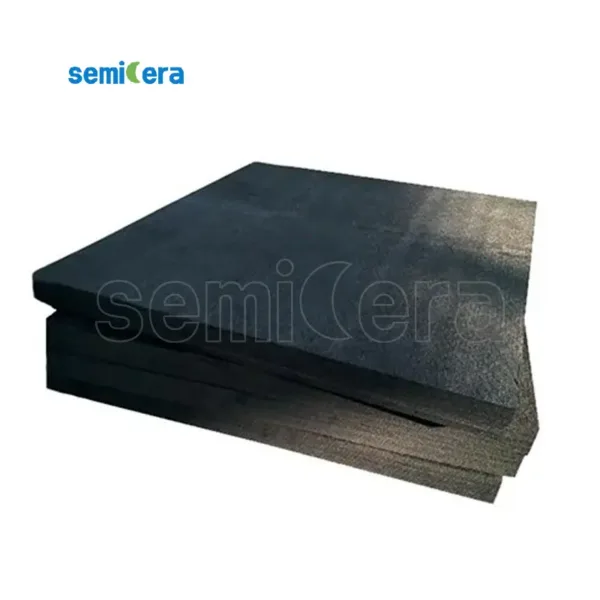

Semicera’s High-Temperature Resistant Graphite Rigid Felt is designed to withstand extreme thermal conditions, providing superior heat resistance, durability, and structural stability. This high-performance material is ideal for applications in industries such as aerospace, semiconductor, and energy, where reliability and heat management are crucial. With Semicera’s advanced graphite technology, you can count on exceptional performance and long-lasting efficiency in the most demanding environments.
|
Nome prodotto |
Felimento della grafite |
|
Composizione chimica |
Fibra di carbonio |
|
Densità di massa |
0.12-0.14g/cm3 |
|
Contenuto di carbonio |
> = 99% |
|
Resistenza alla trazione |
0.14Mpa |
|
Thermal conductivity(1150℃) |
0,08 ~ 0,14W/MK |
|
Cenere |
<= 0,005% |
|
Stress schiacciante |
8-10N/cm |
|
Spessore |
1-10mm |
|
Temperatura di elaborazione |
2500(℃) |
Volume Density (g/cm3): 0.22-0.28
Tensile Strength (Mpa): 2.5 (Deformation 5%)
Thermal Conductivity (W/m.k): 0.15-0.25(25) 0.40-0.45(1400)
Specific Resistance (Ohm.cm): 0.18-0.22
Carbon Content (%): ≥99
Ash Content (%): ≤0.6
Moisture Absorption (%): ≤1.6
Purification Scale : Hight Purity
Processing Temperature : 1450-2000
Attualmente sono disponibili quattro voti per fornire prodotti grezzi o trasformati:
SCRF: Purified cured graphite fiber hard felt, heat treatment temperature above 1900℃
SCRF-P: Highly purified RGB hard felt
SCRF-LTC: Purified solidified graphite fiber hard felt, heat treatment temperature above 1900℃, with better thermal insulation performance
SCRF-LTC-P: Highly purified RGB-LTC hard felt
Dimensione disponibile:
Piastra: 1500*1800 (max) spessore 20-200mm
Drum rotondo: 1500*2000 (max) Spessive 20-150mm
Drum quadrato: 1500*1500*2000 (max) spessore 60-120mm
Intervallo di temperatura applicativo: 1250-2600
Fields of applications:
•Vacuum furnaces
•Inert gas furnaces
•Heat treatment (hardening, carbonization, brazing, etc.)
•Carbon fiber production
•Hard metal production
•Sintering applications
•Technical ceramic production
•CVD/PVD coasting
