Advanced High-Temperature Coatings for Graphite Using SiC

07/09/2025

Graphite Using SiC stands out in high-temperature applications because it resists oxidation and maintains strength. Many industries choose a coated graphite crucible Graphite Using SiC for extreme environments. The Silicon Carbide Sic Graphite Crucible for LPE offers reliable performance where durability and thermal stability matter most.

Key Takeaways

SiC coatings protect graphite from oxidation and thermal damage, greatly extending its life in high-temperature environments.

Choosing the right SiC coating type and application method depends on temperature, mechanical stress, and production needs to ensure optimal performance.

Industries like metallurgy, semiconductor manufacturing, aerospace, and chemical processing benefit from SiC-coated graphite for safer, more durable equipment.

Why Graphite Using SiC Needs High-Temperature Protection

Graphite’s Vulnerability to Oxidation

Graphite offers excellent thermal conductivity and strength at high temperatures. However, it reacts quickly with oxygen when exposed to air above 500°C. This reaction forms carbon dioxide gas and causes the graphite to lose mass. The surface of the material becomes rough and weak. Over time, the structure breaks down. Even a small amount of oxygen can start this process.

Note: Oxidation not only reduces the lifespan of graphite but also affects its performance in critical applications.

Consequences of Unprotected Graphite in High-Heat Applications

Unprotected graphite faces several risks in high-temperature environments. The material can erode, crack, or even fail completely. Industries that use Graphite Using SiC, such as metallurgy and semiconductor manufacturing, depend on stable and reliable components. When oxidation occurs, the equipment may require frequent replacement. This leads to higher costs and unexpected downtime.

Loss of mechanical strength

Increased brittleness

Reduced thermal efficiency

Shortened service life

Proper protection ensures that graphite maintains its properties and continues to perform under extreme conditions.

Types of SiC Coatings for Graphite Using SiC

Single-Layer SiC Coatings

Single-layer SiC coatings provide a straightforward solution for protecting graphite in high-temperature environments. Manufacturers apply a uniform layer of silicon carbide directly onto the graphite surface. This layer acts as a barrier against oxygen and other reactive gases. The coating prevents oxidation and helps the graphite retain its strength.

Advantages:
- Simple application process
- Good adhesion to graphite
- Effective protection at moderate temperatures

Limitations:
- May develop microcracks under thermal cycling
- Limited resistance at extremely high temperatures

Tip: Single-layer SiC coatings work best for applications where temperature fluctuations remain minimal.

Multi-Layer and Composite Coatings

Multi-layer and composite coatings offer enhanced protection for graphite components. These systems use several layers, each with a specific function. For example, an inner layer may bond tightly to the graphite, while an outer layer resists oxidation. Composite coatings often combine SiC with other ceramics or refractory materials.

Common multi-layer structures include:

Layer Type	Function
Bonding Layer	Improves adhesion to graphite
Intermediate Layer	Reduces thermal stress
Top SiC Layer	Provides oxidation resistance

Multi-layer coatings handle rapid temperature changes better than single-layer systems. They also reduce the risk of coating failure due to cracking or delamination.

SiC with Additives (e.g., MoSi2, Mullite, Ultra-High-Temperature Ceramics)

Engineers often enhance SiC coatings by adding materials such as molybdenum disilicide (MoSi2), mullite, or ultra-high-temperature ceramics. These additives improve the performance of the coating in several ways.

MoSi2 increases oxidation resistance at temperatures above 1500°C.

Mullite adds thermal shock resistance and helps prevent crack formation.

Ultra-high-temperature ceramics (UHTCs) such as zirconium diboride (ZrB2) or hafnium carbide (HfC) extend the service life of Graphite Using SiC in the harshest environments.

Note: The choice of additive depends on the specific operating conditions and the desired balance between cost and performance.

These advanced coatings allow graphite components to perform reliably in industries like aerospace, metallurgy, and semiconductor manufacturing.

Benefits of SiC Coatings on Graphite Using SiC

Enhanced Oxidation Resistance

SiC coatings create a strong barrier that shields graphite from oxygen. This barrier prevents the rapid formation of carbon dioxide, which can damage the material. When exposed to high temperatures, the SiC layer reacts with oxygen first. This reaction forms a thin, stable layer of silicon dioxide. The silicon dioxide layer blocks further oxygen from reaching the graphite. As a result, Graphite Using SiC maintains its structure and performance even in harsh environments.

Note: Enhanced oxidation resistance means longer service life and fewer replacements for critical components.

Improved Thermal Stability

SiC coatings help graphite withstand extreme heat without losing shape or strength. The coating keeps the surface smooth and prevents thermal shock. This stability allows the material to handle rapid temperature changes. Industries that use high-temperature furnaces or reactors benefit from this property. The coated graphite does not warp or crack easily, even after many heating and cooling cycles.

Maintains performance at temperatures above 1500°C

Reduces risk of thermal damage

Mechanical Strength and Durability

SiC coatings add toughness to graphite components. The hard ceramic layer resists scratches, impacts, and wear. This extra strength protects the graphite from mechanical stress during handling or operation. The coating also prevents the formation of microcracks, which can lead to failure over time. With SiC protection, graphite parts last longer and require less maintenance.

Property	Benefit
Hardness	Resists abrasion
Toughness	Withstands impacts
Durability	Extends service life

Application Methods for SiC Coatings on Graphite Using SiC

Chemical Vapor Deposition (CVD)

Chemical Vapor Deposition, or CVD, creates high-quality SiC coatings on graphite surfaces. In this process, engineers introduce silicon and carbon-containing gases into a heated chamber. The gases react and form a solid SiC layer on the graphite. CVD produces coatings with excellent uniformity and strong adhesion. Many industries prefer this method for its ability to create dense, crack-free layers. However, CVD requires special equipment and careful control of temperature and gas flow.

Physical Vapor Deposition (PVD)

Physical Vapor Deposition, or PVD, uses a different approach. In PVD, a solid source of silicon carbide vaporizes inside a vacuum chamber. The vapor then condenses onto the graphite, forming a thin, protective coating. PVD works well for creating smooth and even surfaces. This method allows precise control over coating thickness. PVD often suits applications where thin, high-purity coatings are needed.

Pack Cementation

Pack cementation offers a cost-effective way to apply SiC coatings. Technicians pack graphite parts in a mixture of silicon-containing powders. They heat the assembly in a furnace. The silicon vapor diffuses into the graphite and reacts to form a SiC layer. Pack cementation produces thicker coatings and works well for large or complex shapes. This method does not require a vacuum, making it suitable for industrial-scale production.

Combustion Synthesis

Combustion synthesis uses a self-sustaining chemical reaction to form SiC coatings. Engineers mix silicon and carbon powders on the graphite surface and ignite the mixture. The reaction generates enough heat to create a SiC layer quickly. Combustion synthesis provides a fast and energy-efficient option. It works best for applications where rapid coating is important.

Tip: The choice of application method depends on the desired coating thickness, uniformity, and production scale for Graphite Using SiC.

How Application Methods Influence Performance of Graphite Using SiC

Coating Thickness and Uniformity

Different application methods produce coatings with unique thickness and uniformity. Chemical Vapor Deposition (CVD) creates thin, even layers that cover every part of the graphite surface. Physical Vapor Deposition (PVD) also forms smooth coatings but often results in thinner layers. Pack cementation can produce thicker coatings, but the layer may not be as uniform. Combustion synthesis works quickly, yet the coating thickness can vary across the surface.

Uniform coatings protect graphite better and reduce weak spots. Thicker coatings last longer but may crack if not applied evenly.

Adhesion and Microstructure

The way a coating sticks to graphite depends on the method used. CVD and PVD both create strong bonds between the SiC layer and the graphite. These methods also allow for control over the microstructure, making the coating dense and less likely to form cracks. Pack cementation may lead to a rougher surface and less adhesion. Combustion synthesis can create a porous structure, which may lower protection.

Method	Adhesion Quality	Microstructure
CVD	Excellent	Dense, smooth
PVD	Good	Fine, uniform
Pack Cementation	Moderate	Coarse, thick
Combustion Synthesis	Variable	Porous, uneven

Cost and Scalability Considerations

Each method has different costs and production limits. CVD and PVD need special equipment and take more time, which increases costs. Pack cementation and combustion synthesis cost less and work well for large batches. Companies choose the method based on budget, part size, and how many pieces they need to coat.

Tip: For large-scale production, pack cementation offers a balance between cost and performance.

Mechanisms of Oxidation Resistance in Graphite Using SiC

Formation of Protective SiO2 Layer

Silicon carbide coatings protect graphite by forming a silicon dioxide (SiO2) layer during high-temperature exposure. When oxygen contacts the SiC surface, a chemical reaction creates this SiO2 film. The layer acts as a shield. It blocks oxygen from reaching the graphite underneath. This barrier remains stable at high temperatures. It prevents further oxidation and keeps the graphite strong.

Note: The SiO2 layer repairs itself if small cracks appear. Oxygen reacts with exposed SiC to form new SiO2, closing gaps and maintaining protection.

Engineers value this self-healing property. It helps coated parts last longer in harsh environments.

Role of Microstructure and Phase Composition

The microstructure of the SiC coating influences how well it resists oxidation. Dense coatings with few pores stop oxygen from passing through. Fine grains and a smooth surface improve the barrier effect. The phase composition also matters. Pure SiC provides strong protection, but adding materials like MoSi2 or mullite can boost performance. These additives help the coating handle rapid temperature changes and reduce the risk of cracks.

Dense microstructure = better oxidation resistance

Additives = improved thermal shock resistance

A well-designed coating combines the right microstructure and phase composition. This approach ensures reliable protection for graphite in extreme conditions.

Real-World Performance and Optimal Compositions for Graphite Using SiC

Oxidation Resistance at Elevated Temperatures

SiC coatings show strong performance in high-temperature environments. Many tests confirm that these coatings protect graphite from oxidation at temperatures above 1500°C. The SiC layer forms a stable barrier, which prevents oxygen from reaching the graphite. In real-world applications, coated parts often last several times longer than uncoated ones. Industries such as metallurgy and semiconductor manufacturing rely on this protection to keep equipment running safely.

Note: SiC coatings can maintain their protective qualities even after repeated heating and cooling cycles.

Data on Service Life and Failure Modes

Field data shows that SiC-coated graphite components can operate for thousands of hours without significant degradation. Most failures occur when the coating develops cracks or becomes too thin. Thermal cycling and mechanical stress can cause these issues. Regular inspection helps detect early signs of wear. When the SiC layer remains intact, the underlying graphite stays protected and functional.

Failure Mode	Cause	Prevention Tip
Cracking	Thermal shock	Use multi-layer design
Thinning	Abrasion or erosion	Apply thicker coating
Delamination	Poor adhesion	Improve surface prep

Recommended Compositions and Structures

Experts recommend multi-layer SiC coatings for the best performance. Adding materials like MoSi2 or mullite can improve thermal shock resistance. Dense, uniform coatings work best for harsh environments. For most industrial uses, a combination of a bonding layer, an intermediate layer, and a top SiC layer provides optimal protection.

Tip: Choose the coating structure based on the specific temperature and mechanical demands of your application.

Practical Recommendations and Application Areas for Graphite Using SiC

Selecting the Right Coating for Your Application

Choosing the best SiC coating depends on the operating environment and performance needs. Engineers should start by identifying the maximum temperature and the presence of oxygen or other reactive gases. For steady, moderate temperatures, a single-layer SiC coating often provides enough protection. Multi-layer or composite coatings work better in environments with rapid temperature changes or high mechanical stress. Additives like MoSi2 or mullite improve resistance to thermal shock and extend service life.

Tip: Always match the coating thickness to the expected wear and abrasion. Thicker coatings last longer but may cost more.

A simple table can help guide the selection:

Application Condition	Recommended Coating Type
Moderate, stable heat	Single-layer SiC
Rapid temperature cycling	Multi-layer or composite
Extreme temperatures	SiC with additives

Key Industries and Use Cases

Many industries benefit from SiC-coated graphite. Metallurgy uses these coatings in crucibles and furnace parts. The semiconductor industry relies on them for wafer processing and crystal growth. Aerospace companies use coated graphite for rocket nozzles and heat shields. Chemical processing plants choose these materials for reactors and high-temperature seals.

Metallurgy: Crucibles, molds, heating elements

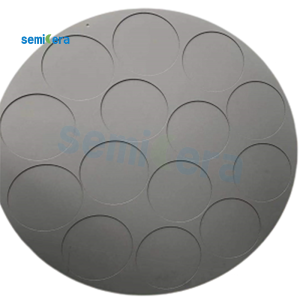

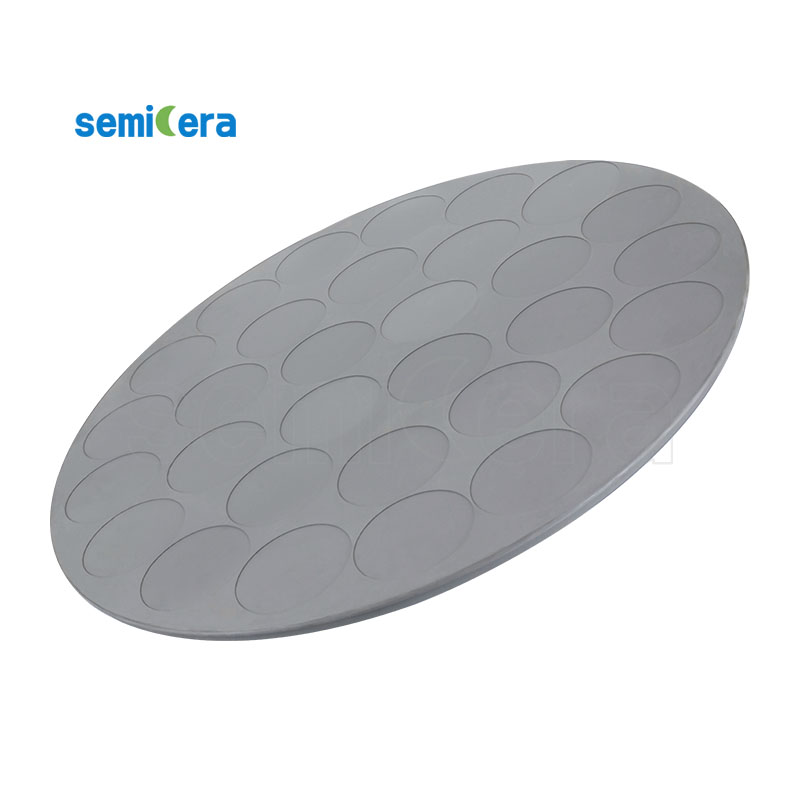

Semiconductor: Wafer boats, susceptors, heaters

Aerospace: Nozzles, thermal protection systems

Chemical processing: Linings, seals, reaction vessels

Note: Selecting the right coating improves safety, reduces downtime, and lowers maintenance costs.

SiC coatings deliver strong protection for graphite in high-temperature settings. The coating type and application method affect how long components last. Engineers should select coatings based on specific needs. Many industries trust SiC-coated graphite to reduce maintenance and extend equipment life.

FAQ

What temperatures can SiC-coated graphite withstand?

SiC-coated graphite can handle temperatures above 1500°C. The coating protects the graphite from oxidation and thermal damage in extreme heat.

How does SiC coating improve graphite durability?

The SiC layer forms a hard, protective barrier. This barrier resists wear, impact, and oxidation, which helps graphite parts last longer in harsh environments.

Which industries use SiC-coated graphite most often?

Metallurgy, semiconductor manufacturing, aerospace, and chemical processing rely on SiC-coated graphite for high-temperature applications and improved component life.
