Ga2O3 Epitaxy

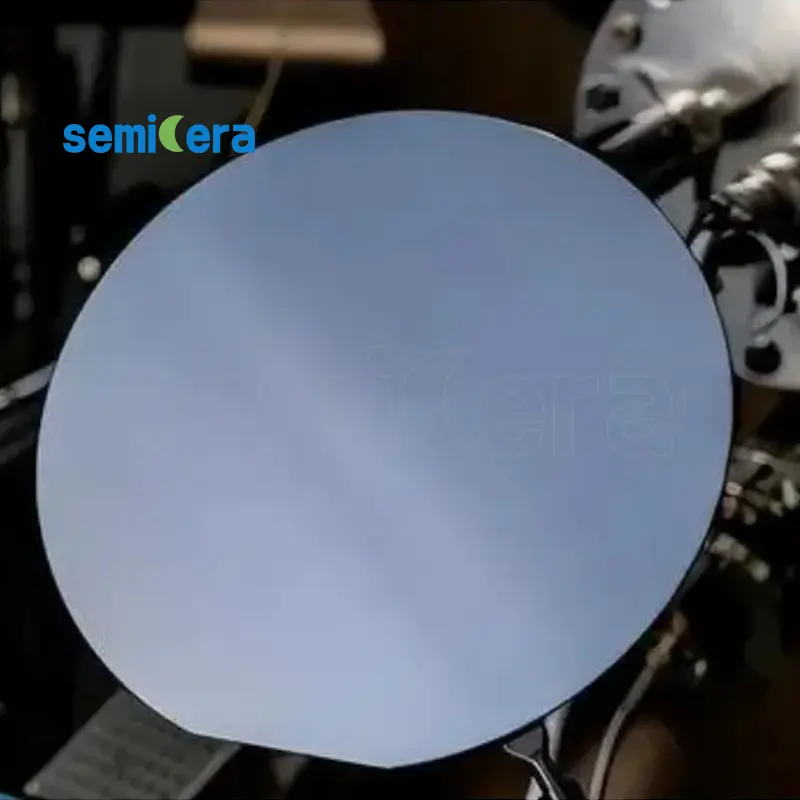

Ga2O3Epitaxy– Enhance your high-power electronic and optoelectronic devices with Semicera’s Ga2O3Epitaxy, offering unmatched performance and reliability for advanced semiconductor applications.

شبه proudly offers Ga2O3 Epitaxy, a state-of-the-art solution designed to push the boundaries of power electronics and optoelectronics. This advanced epitaxial technology leverages the unique properties of Gallium Oxide (Ga2O3) to deliver superior performance in demanding applications.

الميزات الرئيسية:

     • Exceptional Wide Bandgap: Ga2O3 Epitaxy features an ultra-wide bandgap, allowing for higher breakdown voltages and efficient operation in high-power environments.

     • High Thermal Conductivity: The epitaxial layer provides excellent thermal conductivity, ensuring stable operation even under high-temperature conditions, making it ideal for high-frequency devices.

     • Superior Material Quality: Achieve high crystal quality with minimal defects, ensuring optimal device performance and longevity, especially in critical applications such as power transistors and UV detectors.

     • Versatility in Applications: Perfectly suited for power electronics, RF applications, and optoelectronics, providing a reliable foundation for next-generation semiconductor devices.



Discover the potential of Ga2O3 Epitaxy with Semicera’s innovative solutions. Our epitaxial products are designed to meet the highest standards of quality and performance, enabling your devices to operate with maximum efficiency and reliability. Choose Semicera for cutting-edge semiconductor technology.

أغراض

إنتاج

بحث

دمية

المعلمات البلورية

polytype

4H

خطأ في اتجاه السطح

4±0.15°

المعلمات الكهربائية

Dopant

نيتروجين من النوع

المقاومة

0.015-0.025OHM · سم

المعلمات الميكانيكية

قطر

150.0 ± 0.2mm

سماكة

350 ± 25 ميكرون

الاتجاه المسطح الأولي

[1-100]±5°

طول مسطح أساسي

47.5 ± 1.5mm

شقة ثانوية

لا أحد

TTV

≤5 ميكرون

≤10 ميكرون

≤15 ميكرون

LTV

≤3 ميكرون (5 ملم*5 ملم)

≤5 ميكرون (5 ملم*5 ملم)

≤10 ميكرون (5 ملم*5 ملم)

قَوس

-15μm ~ 15μm

-35μm ~ 35μm

-45μm ~ 45μm

الاعوجاج

≤35 ميكرون

≤45 ميكرون

≤55 ميكرون

الخشونة الأمامية (si-face) (AFM)

Ra≤0.2nm (5μm*5μm)

بناء

كثافة micropipe

<1 EA/CM2

<10 EA/CM2

<15 EA/CM2

الشوائب المعدنية

≤5E10atoms/cm2

نا

BPD

≤1500 EA/CM2

≤3000 EA/CM2

نا

TSD

≤500 EA/CM2

≤1000 EA/CM2

نا

الجودة الأمامية

أمام

سي

الانتهاء من السطح

Si-Face CMP

الجزيئات

≤60A/WEFR (SIZE 30.3μM)

نا

الخدوش

≤5ea/مم. الطول التراكمي ≤Diameter

الطول التراكمي ≤2*القطر

نا

قشر البرتقال/الحفر/البقع/الدماغ/الشقوق/التلوث

لا أحد

نا

رقائق الحافة/المسافات البادئة/الكسر/الألواح السداسية

لا أحد

المناطق polytype

لا أحد

منطقة تراكمية 20%

التراكمية منطقة ≤30%

وضع علامة ليزر الأمامية

لا أحد

جودة الظهر

الانتهاء من الظهر

C-Face CMP

الخدوش

≤5EA/MM ، الطول التراكمي ≤2*القطر

نا

عيوب الظهر (رقائق الحافة/المسافات البادئة)

لا أحد

خشونة الظهر

Ra≤0.2nm (5μm*5μm)

عودة ليزر العلامات

1 مم (من الحافة العليا)

حافة

حافة

شامفر

التغليف

التغليف

جاهز لـ EPI مع تغليف فراغ

عبوات الكاسيت متعددة الفرس

*الملاحظات : "NA" تعني عدم وجود عناصر طلب لم يتم ذكرها قد تشير إلى Semi.
