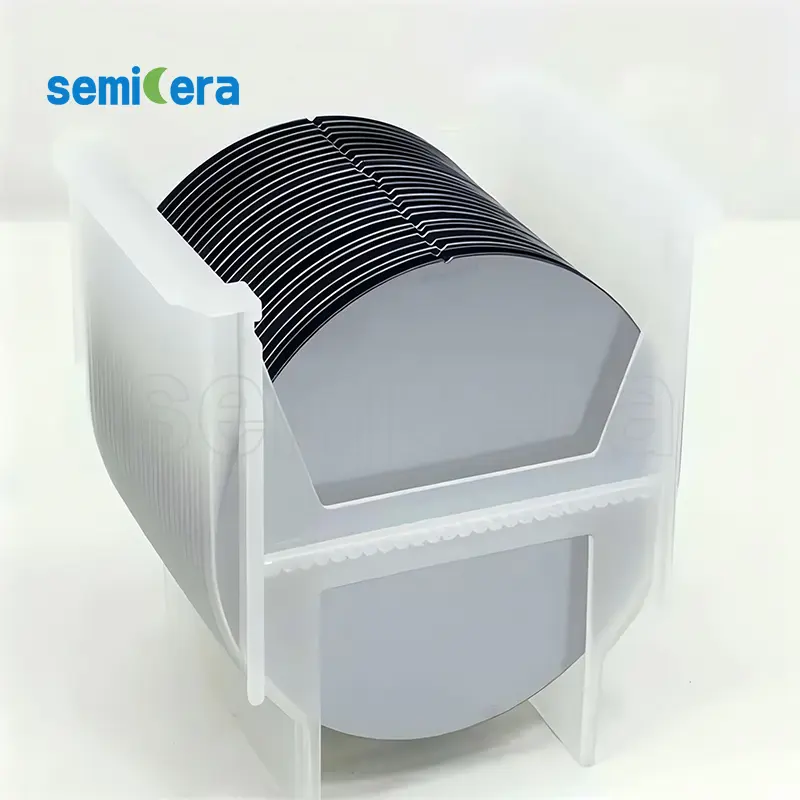

Wafer Cassette Carrier

Wafer Cassette Carrier– Ensure the safe and efficient transport of your wafers with Semicera’s Wafer Cassette Carrier, designed for optimal protection and ease of handling in semiconductor manufacturing.

Semicera introduces the Wafer Cassette Carrier, a critical solution for the secure and efficient handling of semiconductor wafers. This carrier is engineered to meet the stringent requirements of the semiconductor industry, ensuring the protection and integrity of your wafers throughout the manufacturing process.



الميزات الرئيسية:

     • Robust Construction: ال Wafer Cassette Carrier is built from high-quality, durable materials that withstand the rigors of semiconductor environments, providing reliable protection against contamination and physical damage.

     • Precise Alignment: Designed for precise wafer alignment, this carrier ensures that wafers are securely held in place, minimizing the risk of misalignment or damage during transport.

     • Easy Handling: Ergonomically designed for ease of use, the carrier simplifies the loading and unloading process, improving workflow efficiency in cleanroom environments.

     • Compatibility: Compatible with a wide range of wafer sizes and types, making it versatile for various semiconductor manufacturing needs.



Experience unparalleled protection and convenience with Semicera’s Wafer Cassette Carrier. Our carrier is designed to meet the highest standards of semiconductor manufacturing, ensuring your wafers remain in pristine condition from start to finish. Trust Semicera to deliver the quality and reliability you need for your most critical processes.

أغراض

إنتاج

بحث

دمية

المعلمات البلورية

polytype

4H

خطأ في اتجاه السطح

4±0.15°

المعلمات الكهربائية

Dopant

نيتروجين من النوع

المقاومة

0.015-0.025OHM · سم

المعلمات الميكانيكية

قطر

150.0 ± 0.2mm

سماكة

350 ± 25 ميكرون

الاتجاه المسطح الأولي

[1-100]±5°

طول مسطح أساسي

47.5 ± 1.5mm

شقة ثانوية

لا أحد

TTV

≤5 ميكرون

≤10 ميكرون

≤15 ميكرون

LTV

≤3 ميكرون (5 ملم*5 ملم)

≤5 ميكرون (5 ملم*5 ملم)

≤10 ميكرون (5 ملم*5 ملم)

قَوس

-15μm ~ 15μm

-35μm ~ 35μm

-45μm ~ 45μm

الاعوجاج

≤35 ميكرون

≤45 ميكرون

≤55 ميكرون

الخشونة الأمامية (si-face) (AFM)

Ra≤0.2nm (5μm*5μm)

بناء

كثافة micropipe

<1 EA/CM2

<10 EA/CM2

<15 EA/CM2

الشوائب المعدنية

≤5E10atoms/cm2

نا

BPD

≤1500 EA/CM2

≤3000 EA/CM2

نا

TSD

≤500 EA/CM2

≤1000 EA/CM2

نا

الجودة الأمامية

أمام

سي

الانتهاء من السطح

Si-Face CMP

الجزيئات

≤60A/WEFR (SIZE 30.3μM)

نا

الخدوش

≤5ea/مم. الطول التراكمي ≤Diameter

الطول التراكمي ≤2*القطر

نا

قشر البرتقال/الحفر/البقع/الدماغ/الشقوق/التلوث

لا أحد

نا

رقائق الحافة/المسافات البادئة/الكسر/الألواح السداسية

لا أحد

المناطق polytype

لا أحد

منطقة تراكمية 20%

التراكمية منطقة ≤30%

وضع علامة ليزر الأمامية

لا أحد

جودة الظهر

الانتهاء من الظهر

C-Face CMP

الخدوش

≤5EA/MM ، الطول التراكمي ≤2*القطر

نا

عيوب الظهر (رقائق الحافة/المسافات البادئة)

لا أحد

خشونة الظهر

Ra≤0.2nm (5μm*5μm)

عودة ليزر العلامات

1 مم (من الحافة العليا)

حافة

حافة

شامفر

التغليف

التغليف

جاهز لـ EPI مع تغليف فراغ

عبوات الكاسيت متعددة الفرس

*الملاحظات : "NA" تعني عدم وجود عناصر طلب لم يتم ذكرها قد تشير إلى Semi.
