CFC Protective Plates: How They Protect High-Temperature Thermal Fields in Semiconductor Furnaces

Written by Lucy @Semicera.

Introduction

In high-temperature thermal processing equipment, maintaining the stability of the thermal field is just as important as achieving high temperatures. Components such as heaters, insulation materials, graphite structures, and support assemblies are continuously exposed to extreme temperatures, gas flow, thermal radiation, and particle contamination. Even minor disturbances can affect thermal field uniformity, process repeatability, and component lifetime.

A Carbon Fiber Composite (CFC) protective plate is designed to act as a sacrificial protective barrier inside the thermal field. Rather than generating heat or bearing major structural loads, it shields critical components from particles, airflow erosion, accidental mechanical contact, and excessive thermal radiation, helping to maintain a stable operating environment throughout repeated high-temperature cycles.

What Is a CFC Protective Plate?

A CFC protective plate is a carbon fiber reinforced carbon/carbon composite component installed around or in front of critical thermal field components. It is commonly positioned between the heat source and surrounding structures, or in locations where particles, gas flow, or maintenance activities may threaten sensitive furnace components.

Unlike CFC heaters, which convert electrical energy into heat, or CFC structural components that primarily provide mechanical support, the principal role of a CFC protective plate is protection. It helps preserve the integrity of the thermal field while reducing unnecessary wear on expensive core components.

Its protective functions can be summarized into four aspects:

• Protecting the heater

• Protecting the insulation system

• Protecting the thermal field structure

• Protecting process stability

How Does a CFC Protective Plate Protect the Thermal Field?

1. Intercepting Particles Before They Reach Critical Components

During long-term furnace operation, small particles may be generated from edge wear of graphite or CFC components, minor shedding of insulation materials, or deposits formed during high-temperature processing.

If these particles settle directly onto heaters or other critical thermal field components, they may contribute to:

• Local changes in heat transfer conditions

• Reduced temperature uniformity

• Localized overheating

• Surface erosion or abnormal material consumption

A CFC protective plate acts as a physical interception layer that reduces the likelihood of particles directly reaching the most sensitive areas of the thermal field.

2. Reducing Direct Gas Flow Erosion

Many high-temperature vacuum furnaces and crystal growth systems operate with controlled gas flow conditions. Although the gas atmosphere is process-dependent, continuous gas movement can mechanically erode exposed hot-zone components over time.

Protective plates are often installed around heaters or upstream of sensitive components to reduce the direct impact of gas flow. Instead of allowing high-velocity gas to strike critical parts directly, the protective plate absorbs much of the mechanical erosion, helping extend the service life of the protected components.

3. Providing Mechanical Protection During Assembly and Maintenance

Graphite and carbon-based thermal field components generally exhibit excellent high-temperature performance but remain relatively brittle compared with metallic materials.

During furnace assembly, maintenance, or component replacement, accidental contact with heaters, positioning elements, or thin-wall graphite parts may result in chipping or cracking.

By acting as a mechanical barrier, the CFC protective plate helps reduce the possibility of accidental impact on sensitive internal components during handling and maintenance operations.

4. Shielding Surrounding Components from Thermal Radiation

At elevated temperatures, thermal radiation becomes a dominant mode of heat transfer inside the furnace.

When installed between high-temperature heat sources and surrounding structures, the protective plate functions as a localized thermal radiation shield. Typical applications include:

• Reducing direct radiative heating of the surrounding support structures

• Lowering the thermal exposure of insulation components

• Helping limit overheating in non-target areas of the thermal field

This contributes to improved thermal field management and supports stable furnace operation.

Why Carbon Fiber Composite Is Used for Protective Plates?

Compared with conventional graphite, carbon fiber reinforced carbon/carbon composites provide improved resistance to crack propagation and thermal shock due to their fiber-reinforced microstructure.

The three-dimensional carbon fiber network helps maintain structural integrity even after repeated thermal cycling, making CFC materials well-suited for demanding furnace environments where dimensional stability and long service life are required.

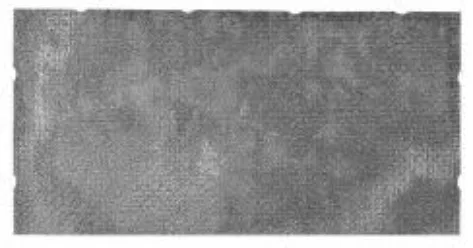

Semicera CFC Protective Plate

Semicera’s CFC protective plate is manufactured using a quasi-three-dimensional carbon fiber reinforced carbon/carbon composite structure with a high carbon fiber content. The material is produced through thermal pressing followed by resin impregnation densification, providing a dense and mechanically stable composite suitable for high-temperature service.

Compared with C/C composites manufactured solely through vapor infiltration processes, this material offers enhanced overall mechanical performance while maintaining excellent thermal shock resistance and structural stability.

Typical Material Properties

• Density: 1.45 g/cm³

• Tensile Strength: ≥200 MPa

• Flexural Strength: ≥160 MPa

Typical Applications

Semicera CFC protective plates are suitable for applications requiring reliable thermal shielding and component protection, including:

• Semiconductor thermal field systems

• High-temperature vacuum furnaces

• Crystal growth equipment

• Powder sintering furnaces

• Other high-temperature processing equipment where particle isolation, structural protection, thermal shielding, and long-term operational stability are required.
